2016+ Honda Civic & Acura Integra Coolant Expansion Tank Upgrade

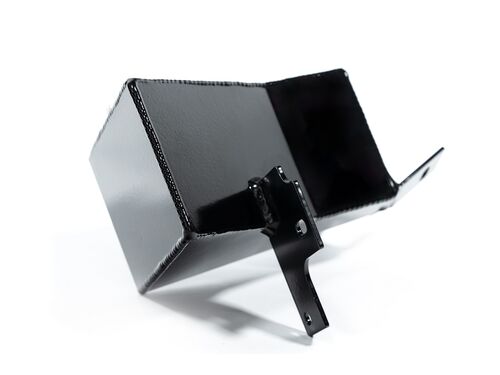

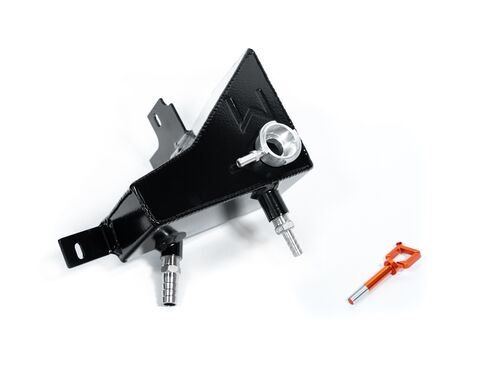

What’s an egg-shell color, gets dirty quickly, sticks outs amongst all the metal underneath the hood of your 10th Gen Civic? If you guessed your stock plastic expansion tank aka coolant tank, then you guessed right. Chuck that boring plastic out the window and get down with our fully seam welded aluminum expansion tank. We’ve hit the looks out of the park with this one. Just look at those welds and smooth high temp paint finish.

And pay careful attention to the filler neck and how it’s welded from the inside out! Why? Because it’s one less weld to see and gives us a much cleaner design. That’s something you’ll only find on this Coolant Tank.

The coolant expansion tank is a simple device with a couple of functions on your late model Civic or Integra. It holds extra coolant, it’s a spot to refill and replace lost coolant, it’s the highest point in the system so will be used to bleed the system If needed, and most importantly it pressurizes the coolant/water mixture to raise its boiling point. Again, a simple, but important part of the cooling system on all 1.5T and 2.0T applications.

If it develops a crack however, it can’t hold the pressure and that’s what’s been happening with the stock coolant tanks on these cars for a while. The stock plastic dulls, gets yellow and brittle over time leading to cracks and worse! Part of the solution here involved switching to aluminum construction for strength. No more brittle plastic. We’ve rated these tanks to hold over 30PSI, well above OE cap pressure (CTR) of 1.3 BAR. That’s above what your cooling system will see at any given time so you know these are built to perform.

As with everything we put out, we want a simple yet profound upgrade without the fuss. Never visit another hardware store in the middle of an install ever again. We’ll include everything you need to get your upgraded coolant tank installed in about an hour and be the show-off at your next Honda meet.

Ok, you’re probably thinking to yourself, how are you going to check the level of the coolant? A sight glass or plastic tube? Nope, that’s old school and boring. Plus, they also leak over time and discolor so why would be introduce another version of issue we are solving in the first place?

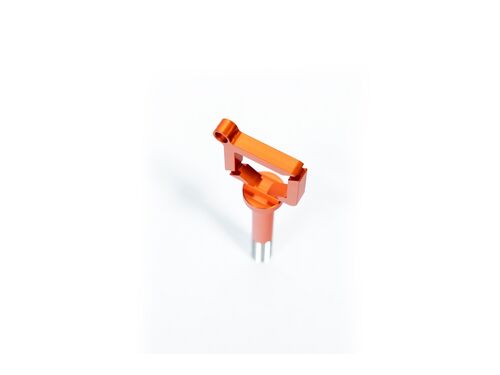

Enter the dipstick. Yes, they’ve been used for a long time on cars for checking things like oil. But, why not coolant? So, we designed this sick looking dipstick that allows for a quick check of the coolant (follow OE instructions for removal of coolant cap). Simply unscrew the cap, dip the dipstick down to the neck of the coolant tank, and see if there is coolant on the threads. Top off as needed to get coolant to at least half way (7 threads). When you’re done, simply hang the dipstick on your key chain, put in the glovebox, or stash it somewhere creative with the included holster.

Our modular design allows for fitment across multiple models by selecting the appropriate NPT fittings specifically for your trim. No need to retrofit or modify. Our coolant tank will work right out of the box.
