2016+ Honda Civic Big Brake Kit

2016+ Honda Civic Big Brake Kit

$1,792.71

Please, select one

FC1-3-413
+
Add to wish list

Description


With increased power comes great speed, and with great speed you need to STOP faster. If you’ve pushed the OE brakes found on your Civic SI, Sport, EX or LX; then you quickly learned that the OE brakes are not up for the challenge.

At 27WON Performance we found the OE brakes to be a real issue and decided to develop our own Big Brake Kit for the 2016+ Honda Civic community.

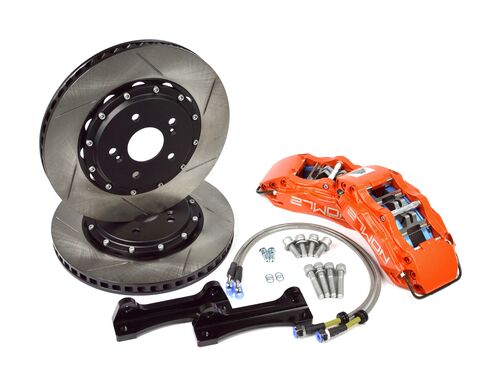

The 27WON BBK combines forged calipers, two-piece rotors, billet steel brackets, stainless steel braided brake lines, and the hardware necessary for install into a complete package that is tested and proven on the track and the daily commute.

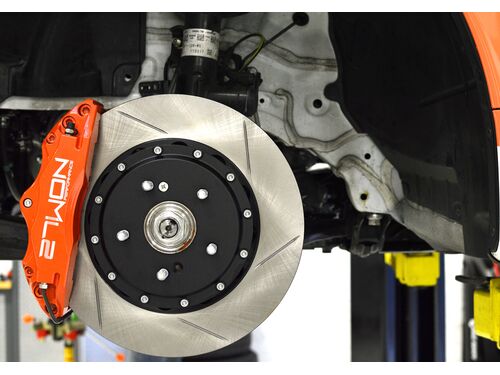

honda-civic-brake-kit-installed

The braking system functions by converting rotational energy into thermal energy and is located on the un-sprung portion of the vehicle; therefore, braking performance is defined by heat dissipation, braking force, and weight. The 27WON Big Brake Kit was designed with these factors in mind to provide you with a complete BBK that outperforms the OE braking system, is durable & reliable, and looks great on your 2016+ Civic.

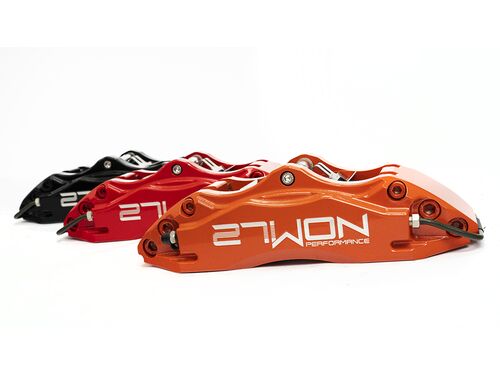

honda-brake-calipers

The forged calipers are coated in a durable and heat resistant powder coated finish for long lasting vibrant color.

Currently offered in three color options:

  • Redline Red
  • Stealth Black
  • Signature Orange

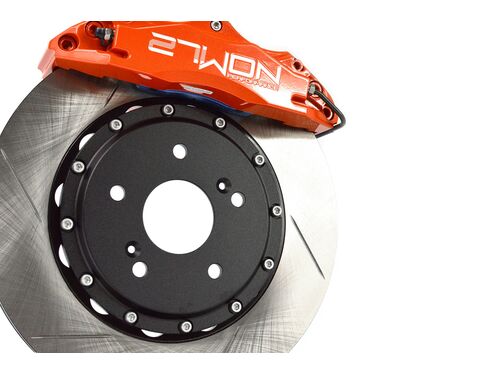

civic-replacement-caliper

The 27WON BBK utilizes a forged aluminum body with a stainless steel staggered 4-piston design to optimize the overall braking performance. Aluminum forgings are used for their superior weight to strength ratio to reduce overall un-sprung mass and reduce caliper flexing during aggressive braking.

This staggered stainless pistons are desinged to provide even pad wear.



staineless-steel-piston-4pot

The braking system functions by converting rotational energy (wheels rotating) into thermal energy (heat); controlling where the waste thermal energy goes is key to the peak performance and endurance of the braking system.

To reduce the rate of excess heat transfer into the brake fluid (reduced risk to boil fluid), stainless steel pistons are used vs the standard aluminum pistons due to stainless steel’s low thermal conductivity. By reducing the amount of heat transferred into the brake fluid, the 27WON BBK is able to perform far better and for a longer period of time vs the OE braking system.

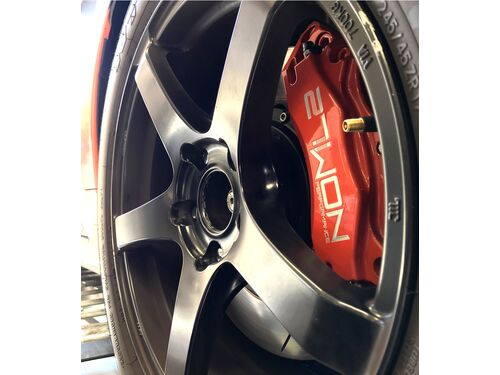

  • The 27WON BBK is designed to be used with 17" inch or larger diameter wheels.
  • OE wheels will require the use of a wheel spacer for fitment over the 27WON BBK. Please use the Wheel Fitment Guide to determine how thick of a spacer is required.
  • Some aftermarket wheels will require the use of a wheel spacer for fitment over the 27WON BBK. Please use the Wheel Fitment Guide to determine how thick of a spacer is required.

Be sure to click, download, and confirm the wheel fitment guide to ensure a smooth and trouble free install of your new BBK


performance-rotors-honda-civic

The 27WON brake rotors use 2-piece construction to reduce the overall weight of the braking system, The rotor hat (center piece) is manufactured from aluminum and finished with a black protective coating. The rotor rings are where the major performance benefits come into play.

The 27WON BBK rotor rings increase the diameter to 13in (330mm) & thickness to 1.10in (28mm); this increase in overall size increases the total thermal capacity of the braking system and the braking force that can be applied to the vehicle.

Further improving the thermal capacity and cooling, the rotors feature directional internal vanes for more efficient cooling and rotor face slots to sweep away debris and brake pad gases that can build up during aggressive stopping.



stainless-steel-brake-lines-civic-racing

No Big Brake Kit is complete without Stainless Steel Brake Lines, which is why 27WON includes DOT approved brake lines with every BBK. The included SS braided lines replace the OEM rubber lines to improve braking response and pedal feel and are designed to fit like OE.

To further complete the BBK, all necessary installation hardware and brackets are included. Billet steel black zinc brackets and class 12.9 hardware are also in every kit for a seamless install.

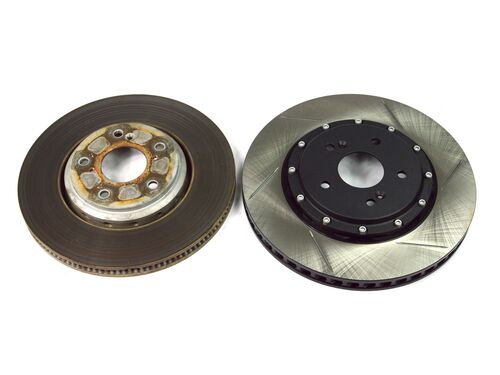

oe-replacement-rotor-civic-lx

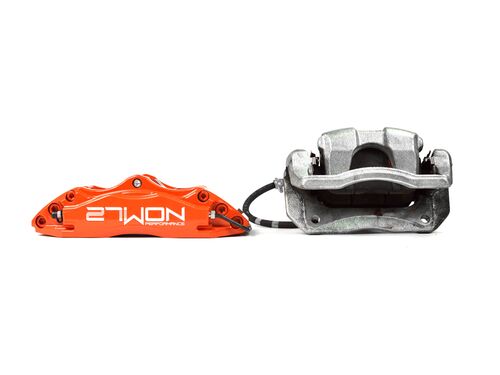

Despite the increased overall size and improved performance, the 27WON BBK weighs 6 lbs LESS (9.3% less) vs the SI OE braking system.

  • SI OE caliper per corner = 15.24lbs
  • SI OE rotor per corner = 17.08lbs
  • SI complete braking system = 64.64lbs
  • 27WON caliper per corner = 11.84lbs
  • 27WON rotor per corner = 17.48lbs
  • 27WON complete braking system = 58.64lbs


CHECK OUT OUR BLOG DETAILING THE DESIGN OF THE 27WON BBK

civic-si-racecar

PART 1:
The BRAKEDOWN, read up on the kit and learn how we went the extra step to get you a kit for your CivicX.


honda-civic-wheel-spacers

We made installing our big brake kit easier for your CivicX. Click the link below to download our wheel fitment guide. Make sure you check wheel clearance ahead of time. You need to have the right size wheels/spacers to have a trouble free install.

Download wheel fitment guide here >>>***WHEEL FITMENT GUIDE***<<<




  • Limited Lifetime Warranty
  • Fully personalized after purchase support on all 27WON products
  • Free Shipping in the Continental U.S. and Discounted International Shipping
  • Complete online installation instructions through the Dozuki App: Search “Performance Installs”
  • For support: >>CLICK TO CONTACT US<<


Installing Your Big Brake Kit

Difficulty: 3/5

3/5 Difficulty

Limited Lifetime Warranty

Limited Lifetime Warranty

No CEL

No CEL


Applications


All 2016+ Honda Civic 1.5T equipped models including SI
2016+ Honda Civic 2.0L
