2016+ Honda Civic Race MAF 1.5T (Upgrade Only)

8 reviews Write a review
$199.99
Please, select one
For SI Models in North America select (SI) For any non-SI models in North America or all models outside of NA select (non-SI)
Select the previous option first
Will you be attaching the Race MAF upgrade to an OEM plastic inlet pipe or a 27WON Performance cast inlet pipe?
Select the previous option first
Requires Tune. See Advisory
L15-6-307-35110
+ −
Add to wish list

Description

A key aspect of engine performance is airflow. Also important is being able to know how much air (oxygen) is going in your Earth Dreams 1.5L engine at all times. Your stock Mass Airflow Sensor, or MAF for short, is tasked with that critical role. It provides information that your engine computer needs to make decisions on fueling and tuning.

However, like most parts on your modern Civic it has its limits. As we continue to increase the amount of air we are moving through our engines with upgrades like the W1 turbocharger or Front mount intercooler we quickly approach the limit of what our factory MAF sensor can read.


Upgrading from the stock precision MAF housing found in our hybrid cold air intake system to our 80mm race MAF increases both the amount of air your engine can ingest for more power potential and ensures accurate measurement of that added flow.

Designed as a 100% direct bolt-on piece to your existing 27WON CAI our upgraded Race MAF requires a simple reflash to get you on the way to more power. Check out the details below…



dare to redefine sub headline banner

redefine sub headline banner
daigram-showing-small-maf-housing-next-to-large-performance-housing

Coming in at an unmatched 80mm our upgrade Race MAF dwarfs the OEM MAF housing with an increase in size of over 72%. With this upgrade you raise the limits of the OEM MAF sensor and pave the way for any and all future airflow mods.

move more air sub headline banner
ktuner-graph-showing-gramspersecond-of-oem-maf-housing Stock-size MAF Housing
ktuner-graph-showing-g/s-on-race-maf-housing 27WON Race MAF Housing

A Larger MAF housing serves 2 main Purposes:

First, with a 3” opening into our intake tract we are physically able to ingest more air into our engine. This allows for an increase in volumetric efficiency which can result in additional horsepower gains. Looking at the graph above you can see we moved more air for a given rpm.

Second, by expanding on the MAF sensor table we are able to avoid “pegging” the sensor. A MAF sensor is pegged or out of limit when more air is physically moving through the housing then the sensor can accurately measure.

By upgrading to a larger housing and then re-scaling the MAF tables via our tuning software we are able to expand what the sensor can read and not have to worry about maxing it out and causing any tuning related issues.

TIP: The sensor in the OE MAF housing has an operating limit of 10,000hz. You can see in the graph above that with the larger MAF housing we are well below this limit (8450 Hz).


quality materials sub headline banner

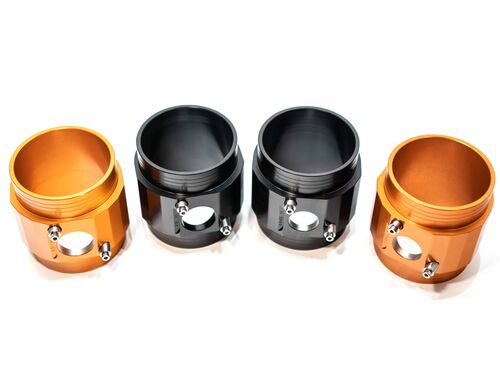

4-colored-race-maf-housing-on-top-of-each-other-2-orange-and-2-black

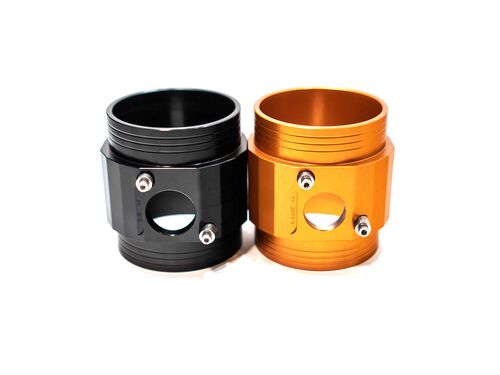

Just like your existing OEM sized MAF housing our upgraded 80mm MAF is constructed from billet aluminum to ensure the tightest of tolerances. it comes finished in an black color for those looking to blend in and our signature orange for the bold ones who dare to REDEFINE their ride.


fully compatible sub headline banner

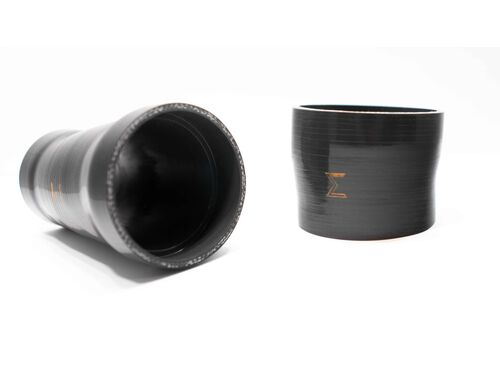

4plu-silicone-next-maf-next-to-clamps-on-metal-toolbox

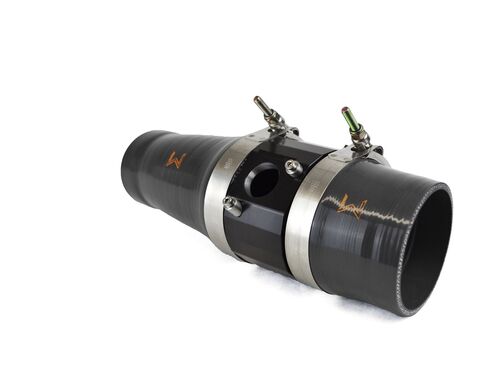

We designed our RACE MAF to work with both SI and non-SI 1.5L turbocharged engines. Kits come with the MAF housing, clamps and silicone to fit either an OEM turbo inlet pipe or our 27WON 80mm turbo inlet pipe. You have everything you need for a simple install.



read the advisory sub headline banner
  • Installation of the 80mm RACE MAF will require scaling of the Mass Airflow tables. It is highly suggested you contact a local tuning professional to help you perform this function.
  • A Hondata Flashpro, KTuner, or standalone ECU is required to perform MAF scaling. It cannot be performed on a stock non-flashed ECU
  • The 27WON 80mm race MAF is designed to work with the 27WON Hybrid CAI only.

CHECK OUT OUR DESIGN BLOG AND SEE WHY YOU NEED A RACE MAF

PART 1:
Pushing the limits
PART 2:
A complete intake tract system
PART 3:
Official Release blog

service and support sub headline banner

Installing Your Race MAF housing

1 Hour Install Time

20 Minute Install Time
Difficulty: 1/5

1/5 Difficulty

Limited Lifetime Warranty

Limited Lifetime Warranty
No CEL

No CEL


Reviews

Ray Napier 12/14/2020, 09:44 PM
I installed the race MAF after running the factory/23psi Ktuner base map. The difference was noticed after only a few moments of driving. Just as with the cold air intake and TIP, the increase in air flow allows for a more liner delivery of power and less throttle input to get up to speed. Roll on power in normal and sport modes has been improved as well. Great upgrade for the Si that will help pave the way for the W2 !
Kong Corpuz 11/19/2020, 03:38 AM
This is a great upgrade if you already have the 27WON CAI. A LOOOOT of swoosh sounds with the stock TIP. Paired with TSP1 27WON Race tune, I fell in love with my Si all over again!
Jesus Lopez 11/04/2020, 04:42 PM
Another amazing product from the 27Won team, recently got it installed had DRob from TSP calibrate the MAF to their TSP stage 1 map and the throttle response is amazing and more aggressive, also love the extra sounds
Brandon Duley 10/06/2020, 08:08 AM
Yeah yeah yeah....another product released, another home run! I wonder if they get tired of releasing such great products all the time!! LOL

I’ve had mine installed for several months now without any issues at all. Install took less than 20 minutes and then worked with DRob to update just the MAF scaling on the TSP2 flex fuel tune I was already running instead of going for the full custom tune since I’m not FBO yet.

Definitely recommend, completes the bigger intake look when paired with the TIP/CAI. Intake sound is a little louder with this compared to the other housing which is a nice bonus
Shai Hayun 10/05/2020, 09:19 PM
Fits beautifully and rightfully between the CAI and TIP to give us enthusiasts a mere taste of what the genius behind 27Won that Vincent is, along with his team of course. Fitment and quality are always impeccable. This race MAF will blow your mind.
Shahvan Mohammed 10/05/2020, 03:18 PM
Another winning product from 27won fitment was spot on. Paired with the 27wom inlet pipe and CAI really opened up the airflow give you more aggressive intake flow once tuned. Install done on the spot no issues. Next turbo to come
Dan Chon 10/05/2020, 12:28 PM
I was waiting on this since the newsletter. I have this RACE MAF linked with the 27won CAI and TIP. It really opens up the air intake and gives my Si all the air it needs. Installation took less than 30 mins and fitment was perfect as always.
Michael Dunning 10/05/2020, 12:10 PM
Yet another awesome component from 27WON! I have this in conjunction with the CAI/TIP/FMIC (no turbo yet). Fitment is 100, looks great and provides all the airflow I need for current and future plans. Had DRob@IMW re-tune TSP Stage 1 for this MAF and the results are great!! No fuel trim/idle issues whatsoever.
Write a review

Applications


2016+ Honda 1.5L only
Must have a 27WON CAI system already installed
Tuning is **REQUIRED**
