Honda 4 Bar MAP Sensor

$92.71
2x Sensors required for 2016+ Turbo Civic, 2023+ Integra and 2018+ Turbo Accord, all others need only one sensor.
I have read the advisory and applications list below
27W-6-888-11
+
*Confirm your Honda/Acura tuning solution has 4 Bar MAP sensor support prior to purchase*
Add to wish list

Description

Every Honda vehicle over the past few decades has come equipped from the factory with a Manifold Absolute Pressure Sensor (MAP sensor).

The MAP sensor reads the amount of air pressure within the manifold or intake tract system of your Civic, S2000, Del Sol, and other Honda models. It converts the pressure signal to electrical data that it sends to the ECU. The ECU uses this info to make the correct adjustments so that your engine runs properly. All of the OEM factory MAP sensors have a limit on how much positive air pressure they can accurately read, often around 28 psi. In comes the need for a 27WON 4 Bar MAP sensor.

Our 4 Bar MAP sensor will allow your 10th or 11th gen Civic and 10th gen Accord or older model Honda to safely read around 45 pounds of pressure. This is a must when turbocharging naturally aspirated applications or raising the boost on your L15B7 or K20C Accord. Read below to find out if you need an aftermarket MAP sensor and why you can trust 27WON to deliver the best one.


dare to redefine sub headline banner

redefine sub headline banner

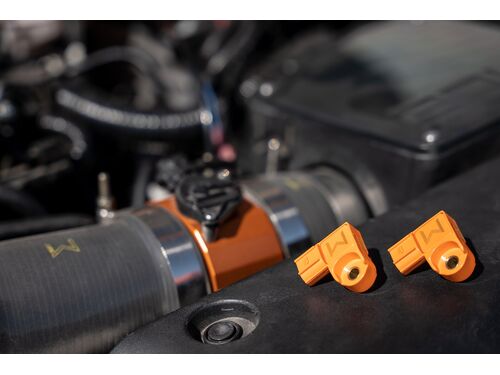

orange_4_bar_map_sensor_on_intercooler_pipe_of_civic

Our 4 Bar MAP sensor is made from a unique one-piece mold that replaces the OEM MAP sensors. This means true bolt on fitment without the need to perform any custom wiring or acquire an expensive adapter harness. The one-piece construction means no concerns with the case halves splitting apart like other sensors on the market.


flashable sub headline banner
brown_oring_for_honda_sensors_on_acura_cars

Each new MAP sensor comes with a brand new o-ring to ensure a boost-leak free seal. A simple check enable and reflash is all that is needed on your Civic SI 2016+ to get up and running. You can complete this install in under 15 minutes. For those with other Honda models be sure and check your tuning software to see if you can enable 4 Bar support.


all applications sub headline banner
  • 04-08 Acura TSX - Single Sensor
  • 2018+ Accord 2.0T - Dual Sensors
    • A worthy addition when running an upgraded turbo like Kuro
  • 2018+ Accord 1.5T - Dual Sensors
  • 02-16 CRV - Single Sensor
  • 2017+ CRV - Dual Sensors
  • 07-08 Honda Fit - Single Sensor
  • 06-09 S2000 - Single Sensor
  • 02-05 Civic Si - Single Sensor
  • 2016+ Civic 1.5T - Dual Sensors
    • A must have upgrade with a big turbo like our W2
  • 2023+ Acura Integra - Dual Sensors
  • 11-13 CRZ (manual only) - Dual Sensors

precision accuracy sub headline banner
two_orange_map_sensors_upside_down

This 4 bar MAP sensor will safely and accurately read up to 45+ PSI positive pressure or 310 kpa which is essential for 10th gen owners looking to make over 28 PSI on their direct injected engines. Other NA Honda owners who are adding forced induction to their builds will also benefit from this sensor as it will give them the resolution they need to make big power.


pop of color sub headline banner

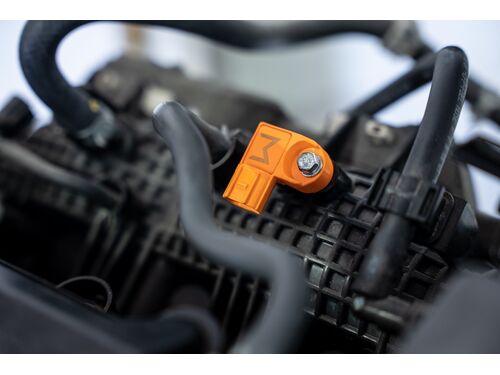

orange_manifod_pressure_sensor_installed_on_car

All of our MAP sensors are finished in our Signature Orange color. A design aspect to make your engine bay pop and let others know you only rock the best parts.


advisory sub headline banner
  • 4 Bar MAP Sensor support from your tuning solution is required. Check with your tuning supplier to confirm this prior to purchase
  • 2x Sensors required for 2016+ Turbo Civic, 2023+ Integra and 2018+ Turbo Accord
  • Not currently supported on Hondata for the 2018+ Turbo Accord or 2023+ Acura Integra
  • Non-Si and 5th gen Acura Integra 4 Bar Support For Full Codebases supported via KTuner
service and support sub headline banner

Installing Your 4 Bar MAP Sensor

20 Minute Install Time

20 Minute Install Time

Limited Lifetime Warranty

Limited Lifetime Warranty

No CEL

No CEL
